The ALE-2000G Patternless 3D Auto Lens Edger is designed for high-precision lens processing in optical labs and eyewear production. It combines optical scanning and 3D mechanical scanning to improve shaping accuracy and processing efficiency. The system supports single lenses, dual lenses, and template tracing for flexible production needs.
The device uses a high-speed optical scanning system and stable mechanical tracing to reduce rework and improve consistency. It is suitable for different frame shapes and lens thicknesses, making it a practical solution for modern edging workflows.
Measurement Functions：
- Optical scan completes in about 3 seconds

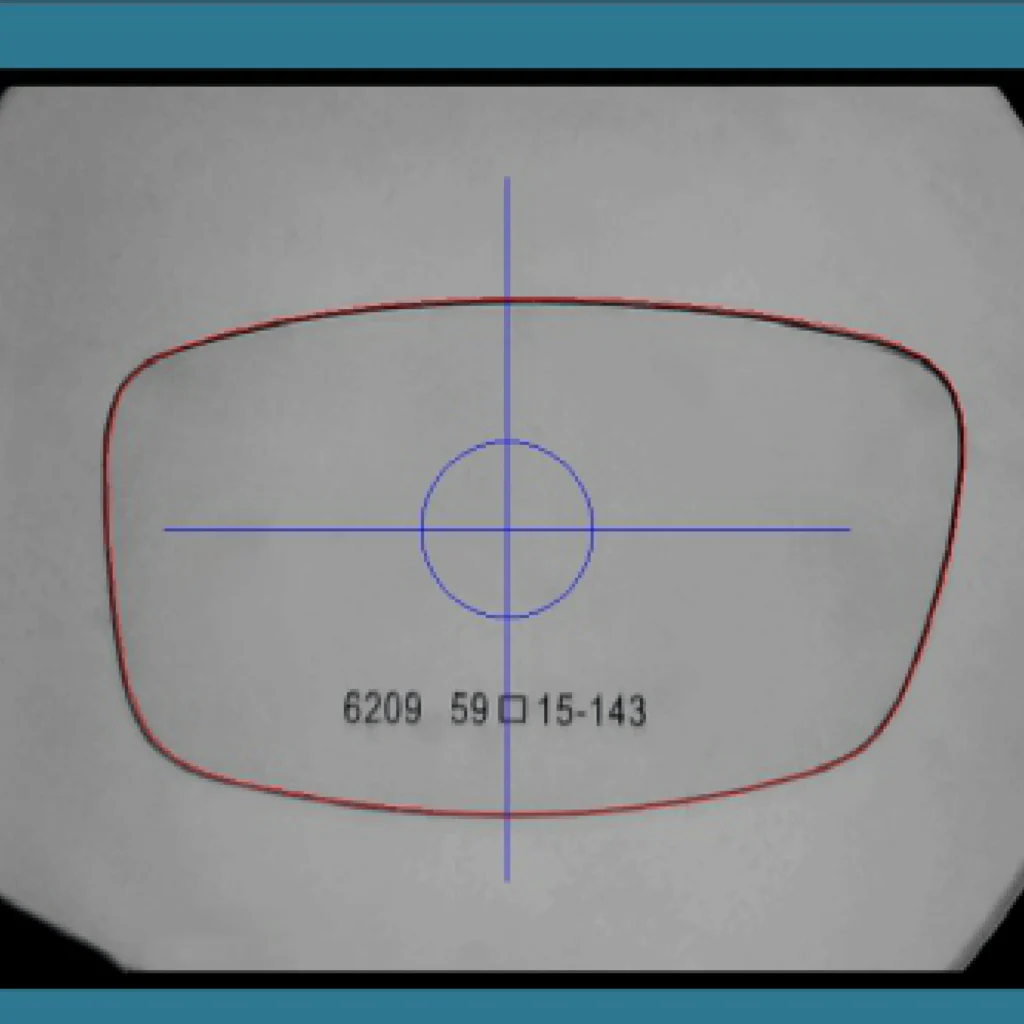

- 3D mechanical scanning maintains stable tracing data
- Improves consistency and reduces processing errors
- Supports continuous production workflows
Specifications
| Parameter | Specification |
|---|---|
| Host size | 720mm × 653mm × 470mm (L×W×H) |
| Weight | 75 kg |
| Voltage | AC100–240V 50/60Hz |
| Power | 1500 W |
| Water Pump Voltage | AC220V 50Hz |
| Water Pump Electric Power | ≤350 W |
| Working Noise | ≤75 dB |
| Operating Ambient Temperature | 5°C – 40°C |
| Edge Diameter | ≤80 mm |
| Flat Edge Processing (No Safety Edge) | ≥19.00 mm |
| Tip Machining (No Safety Edge) | ≥19.00 mm |
Mechanical Scanning Range:
| Parameter | Minimum | Maximum |
|---|---|---|
| Width Scan Size | 20 mm | 58 mm |
| Length Scan Size | 30 mm | 68 mm |
| Frame Thickness | 2.0 mm | 16 mm |
