The ARK-1800 Auto Focus Refractometer is designed for fast and accurate refraction and keratometry measurement in clinics, hospitals, and optical centers. It combines a hexagon prism system with a high-sensitivity CCD to ensure stable and reliable measurement results.
With an automatic focus function, the device can quickly locate the eye and complete measurement without manual adjustment. The icon-based interface and 7-inch TFT LCD make daily operation simple and efficient.
Measurement Functions：
- Refraction (sphere, cylinder, axis)
- Keratometry (corneal curvature and power)
- Corneal astigmatism measurement
- Pupil distance (PD) measurement
- Pupil size detection
- Corneal diameter measurement

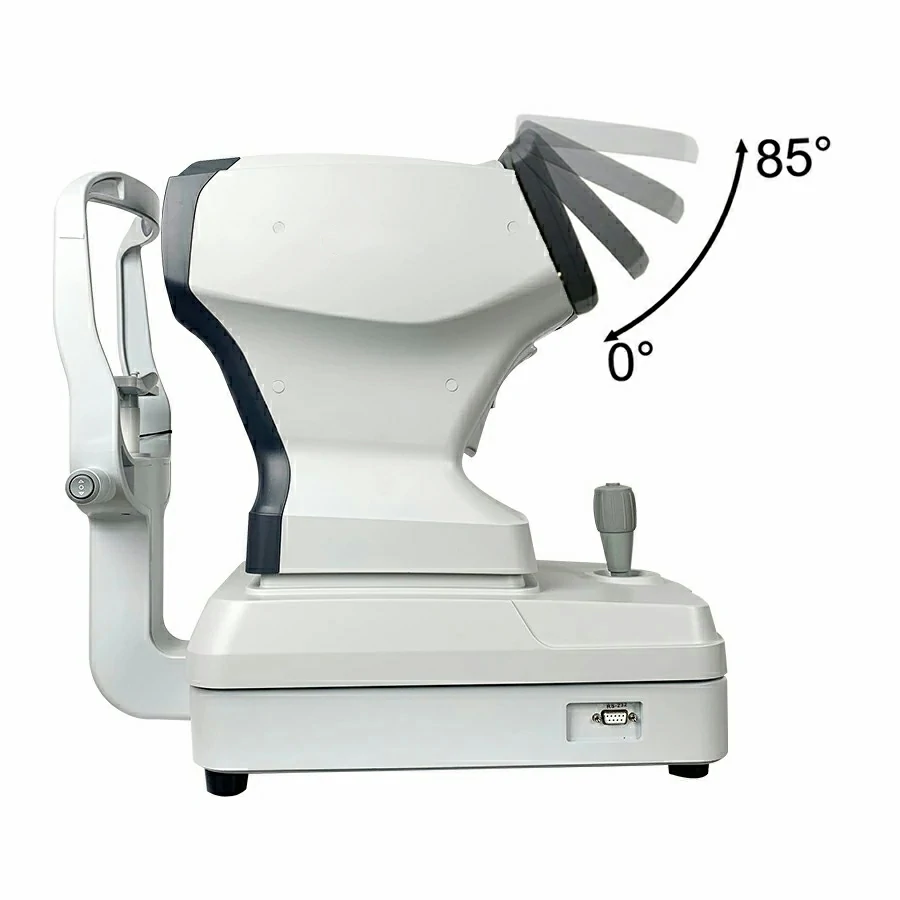

- 85° angel adjustable LCD Monitor
Specifications
Technical Data | |
Transmission Ratio of Measurable Lens | > 10%, when the degree exceeds±10D, the transmittance of the lens is required to be > 20% |
Contact Lens | 0 to ±25D, BC 6.00 to 9.00 |
Display | 7.0-inch HD touch LCD display |
Menu | User friendly design, simple and easy to operate |
Diameter of Lens Used | 20mm-100mm |
Power Supply | AC 100 (+ 10%) – 240 (+ 10%) V50/60Hz 40VA |
Maximum Power | 40W |
Gross Weight | 6kg |
Box Size | 550mm * 300mm * 290mm (length * width * height) |
Environment Condition |
|
A. Temperature: 5-40℃ (service temperature) – 20-60 ℃(storage/transportation temperature) B. Humidity: 30-85% (no condensation) (use humidity) 10-95% (storage transportation humidity) C. Atmospheric pressure: 700-1060hpa D. Altitude: up to 2000m E. Others: no harmful dust and smoke | |
Optional Accessories | Printer (built-in thermal printer, paper width: 57mm) |
Spherical Mirror | 0 to ±35D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Cylinder Sphere | 0 to ±10D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Cylindrical Mirror Axis Position | 0°- 180°(reading accuracy: 1°） |
ADD | 0 to 10 D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Prism | 0 to 15△ (0.01△ ) |
Reading Resolution | 0.01D/ 0.06D/ 0.12D/ 0.25D |
