Explore Details

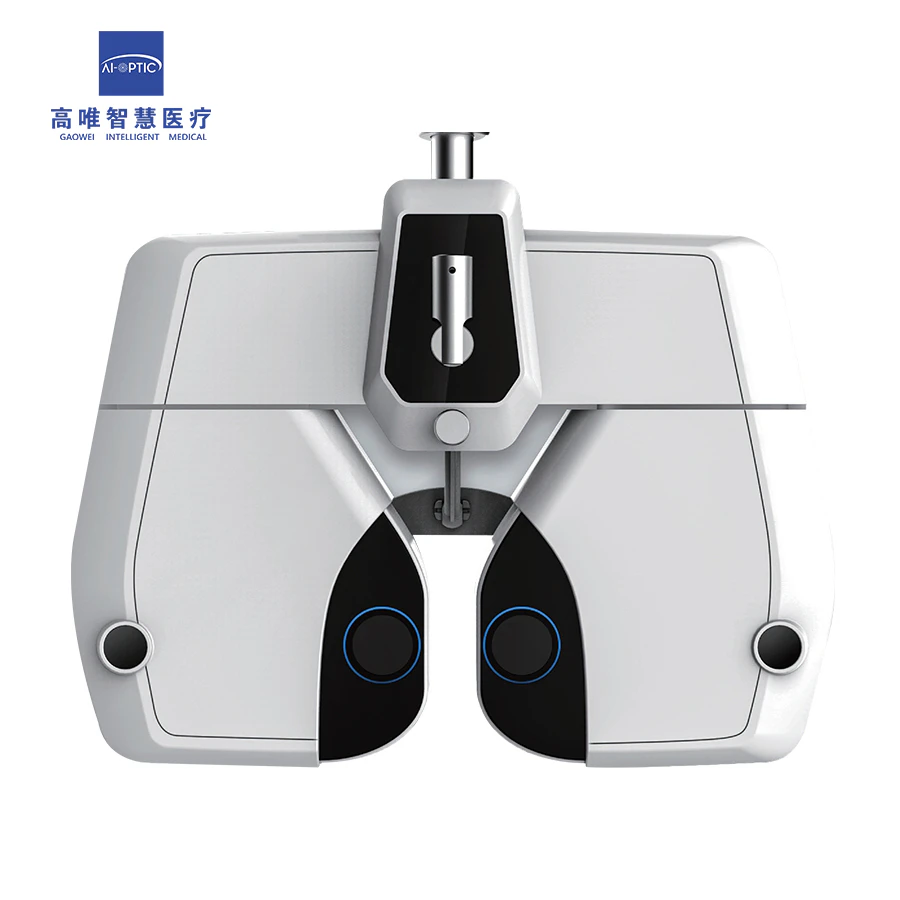

The DVT-1000 Auto Phoropter is designed for accurate and efficient refraction testing in clinics, hospitals, and optical centers. It supports wireless Bluetooth connection with ARK autorefractors and chart projectors, creating a smooth and connected optometry workflow.

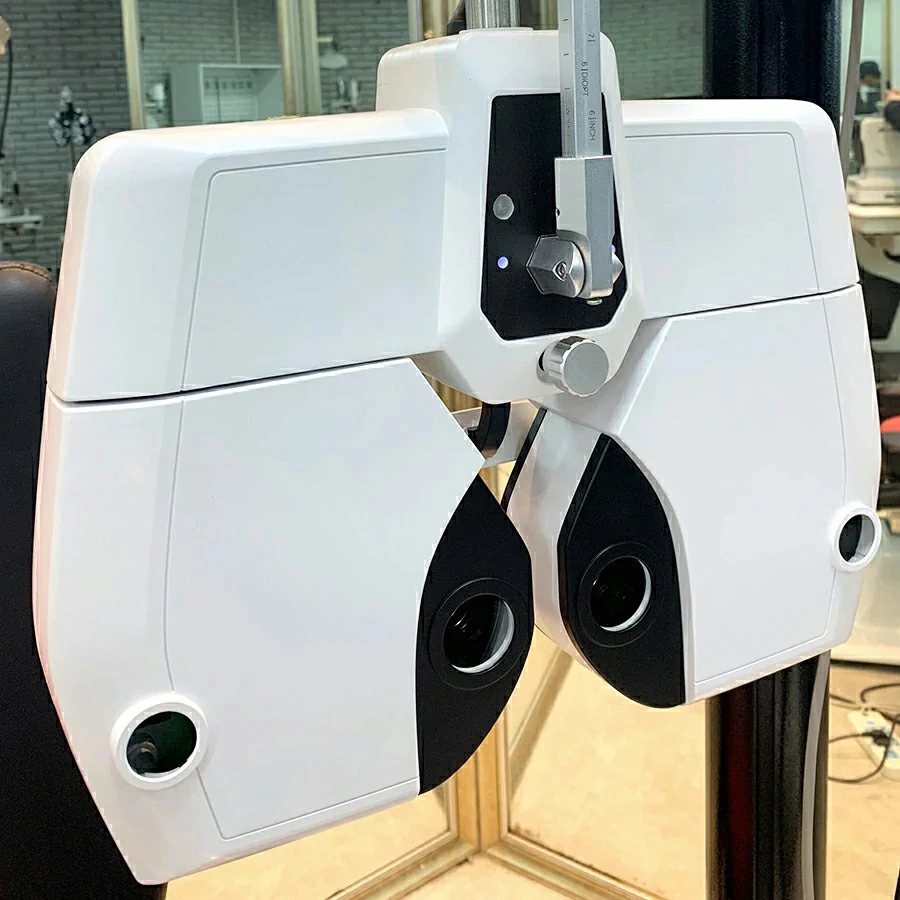

With tablet control, real-time graphical guidance, and direct patient data entry, the system improves testing efficiency and reduces manual operation. Its compact structure, independent PD adjustment, and support for polarized LCD charts make it suitable for daily professional refraction and visual function testing.
Measurement Functions：
- Sphere, cylinder, and axis refraction
- Astigmatism and axis refinement
- Near vision testing
- Visual balance and binocular function testing
- Independent PD adjustment
- Retinoscopy lens support
Specifications
I. Basic Technical Parameters
| Parameter | Specification |
|---|---|
| Spherical Lens | -29.00 D to +26.75 D (0.25D/0.5D/1D/2D/3D steps) |
| Cylindrical Lens | 0.00 D to -8.75 D (0.25D/0.5D/1D/2D/3D steps) |
| Cylinder Axis | 0° to 180° (1°/5° steps) |
| Working Distance | 35 cm to 70 cm (Step: 5 cm) |
| Rotary Prism | 0 to 20 Δ (Step: 1Δ/2Δ) |
| Crossed Cylinder | Jackson Crossed Cylinder 0.25D Jackson Crossed Cylinder 0.50D |
| Double cross cylinder(separating prism) | |
| Retinoscopy Lens: | +1.5D,+ 2.0D(test distance 67cm,50cm) |
II. Auxiliary Lenses
Pinhole lens Φ 1mm
Markov lever: Right eye (horizontal Markov lever), Left eye (vertical Markov lever)
Red-green filter: Right eye (red), Left eye (green)
Polarizing filter: Right eye (135°, 45°), Left eye (45°, 135°)
Separation prism: Right eye (6 Δ BU), Left eye (10 Δ BI)
Fixed Cross Cylinder: Jackson Cross Cylinder 0.50D, Axis fixation 90°
Vision: 32°
III. Data link with optometry series and focal length meter series.
IV. Light body and ultra-low sound
| Parameter | Specification |
|---|---|
| Maximum Size | 600 × 400 × 200 mm |
| Host Size | 360 × 85 × 360 mm |
| Tablet Size | 247 × 179 × 4.68 mm |
| Tablet Resolution | 2860 × 1600 |
| Tablet Screen | 10.1 inches |
| Voltage | AC 100–240V 50/60Hz |
| Power | 90W |
| Weight | 7.5 kg |
| Packaging Volume | 0.05 cubic meters |
| Packing Size | 520 × 450 × 220 mm |
| Packaging Material | Aluminum alloy box |
