AL-1000 Digital Auto Lensmeter

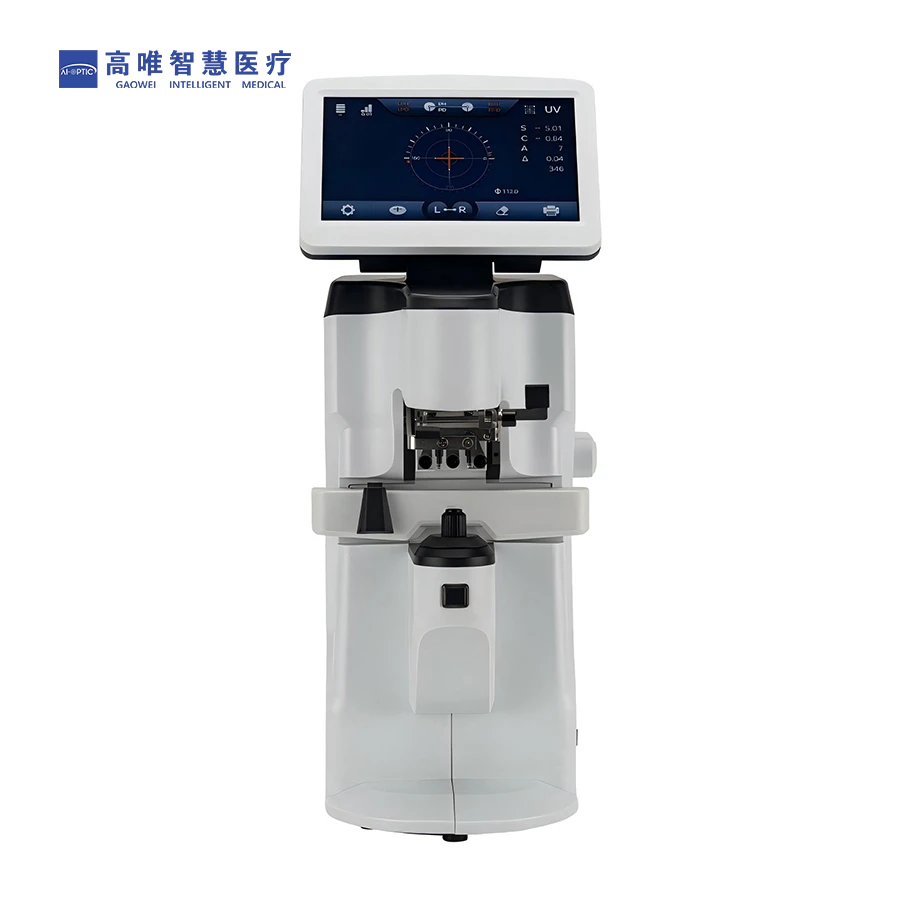

AL-1000 Digital Auto Lensmeter - Image 2

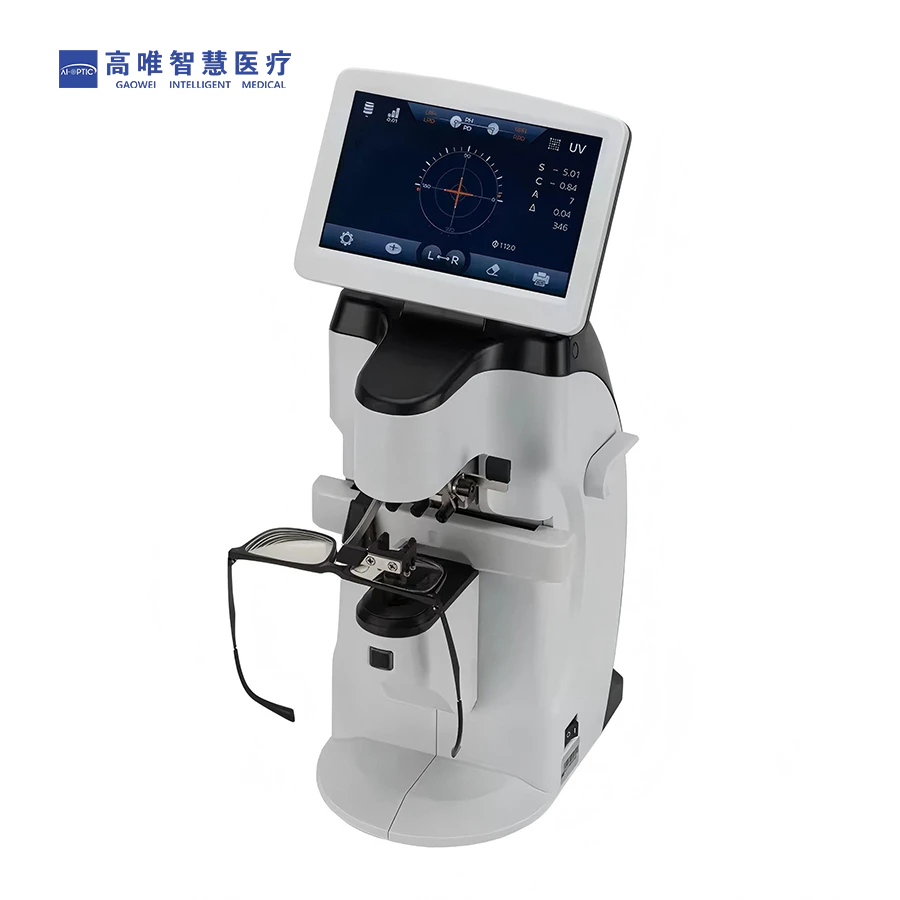

AL-1000 top view image

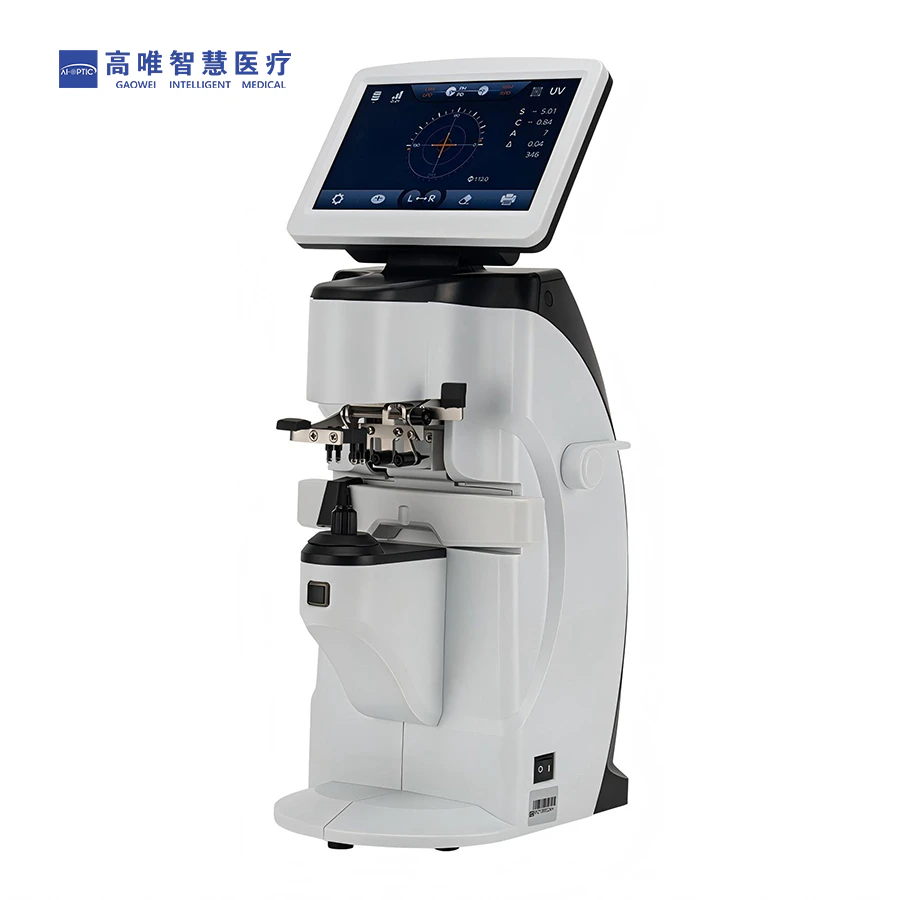

AL-1000 side image

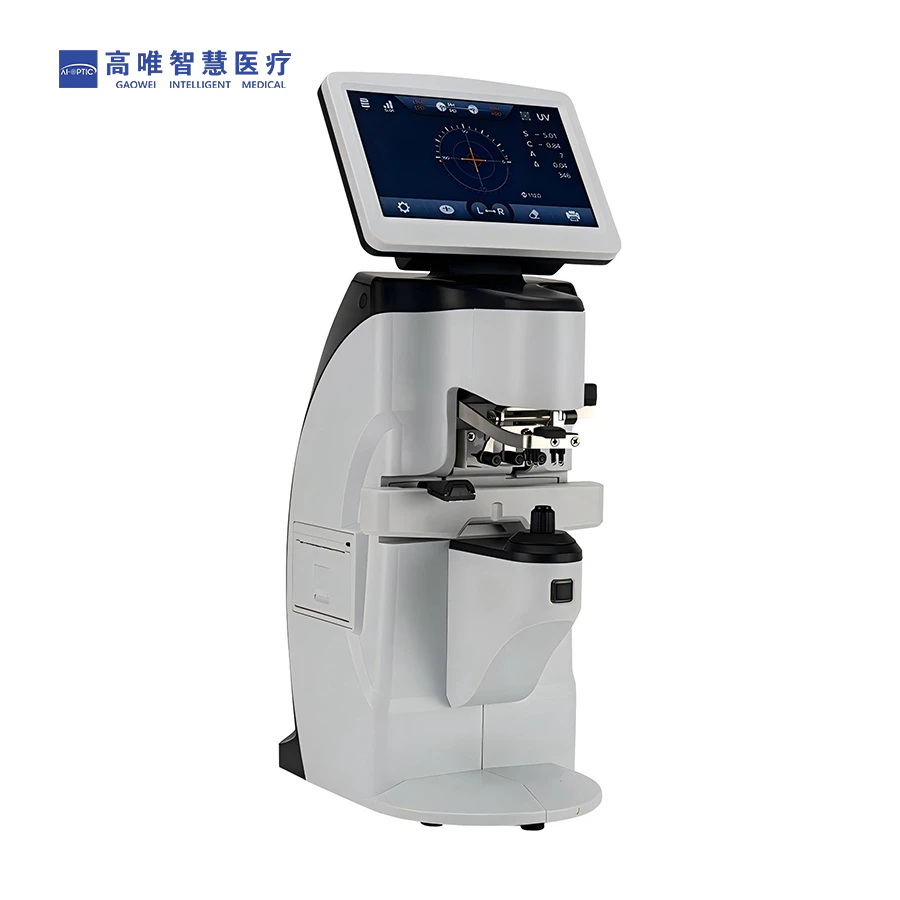

AL-1000 Digital Auto Lensmeter

Model: AL-1000

  • Measures prescription lenses, progressive lenses, and contact lenses
    PD, pupil height, and progressive channel length measurement
    UV and blue light measurement
    Automatic lens recognition for faster operation
    7-inch high-resolution touch display
    Bluetooth, USB, RS232, and WiFi data communication
    Built-in thermal printer for measurement records
Send Inquiry

Explore Details

AL-1000 Digital Auto Lensmeter is an automatic lens measurement device for optical shops and laboratories, helping professionals quickly verify lens parameters and improve eyewear fitting efficiency.

The AL-1000 measures sphere, cylinder, axis, addition, prism, PD, pupil height, and progressive channel length for single vision, progressive, and contact lenses. With a 7-inch touch display, automatic lens recognition, UV and blue light measurement, and multiple data communication options, it provides accurate and convenient lens inspection for optical stores, optometry clinics, and lens laboratories.

Applications

  • Optical Shops
  • Optometry Clinics
  • Lens Laboratories
  • Eyewear Manufacturing

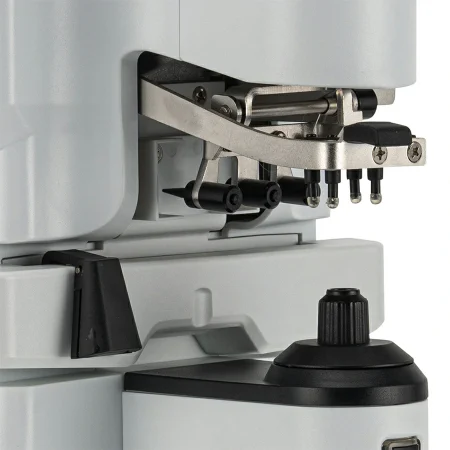

Achieve Precise Results

Designed for accurate lens positioning and reliable optical analysis across different lens types

  • Supports single, progressive and contact lenses
  • Measures sphere, cylinder, axis, prism and addition
  • Fast measurement within 0.1 second
Achieve Precise Results

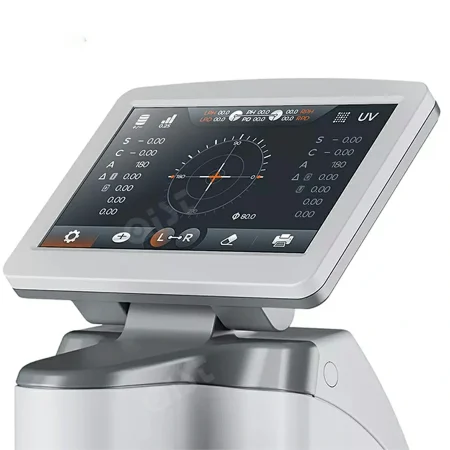

Easy Touch Operation

Simplify lens measurement with an intuitive touchscreen interface and clear data display.

  • 7″ high-resolution LCD/TFT display
  • Capacitive touch panel for fast control
  • Clear measurement data visualization
Easy Touch Operation

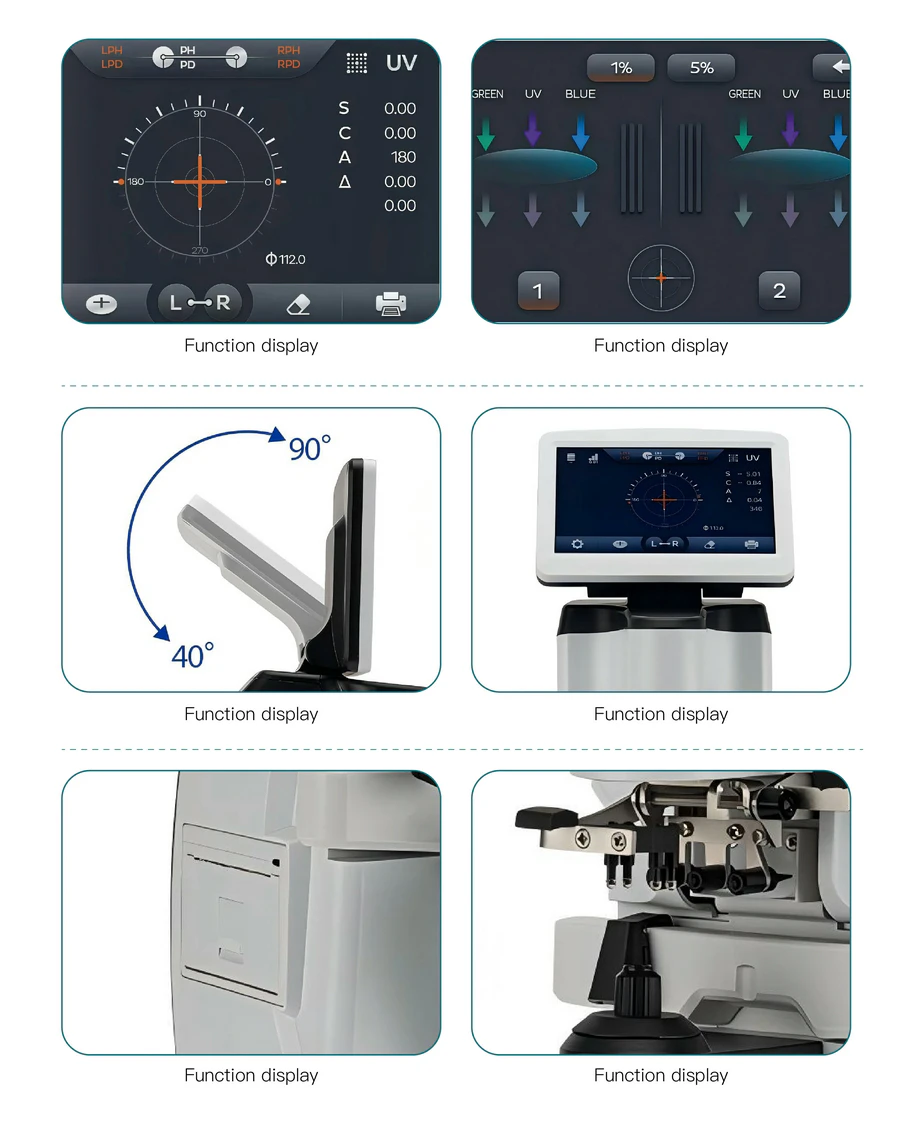

AL-1000-functional-illustration-image

Specifications

ParameterSpecification
Range of Measurement
Sphere0 ~ +25 m, 0.01/0.12/0.25 m steps
Cylinder0 ~ +9.99 m, 0.01/0.12/0.25 m steps
Axis0 – 180° (1° step)
Addition0 ~ +9.99 m, 0.01/0.12/0.25 m steps
Prism0 ~ 15 cm/m, 0.01/0.12/0.25 m steps
Cylinder Mode+, +/-, –
Prism ModeX-Y, P-B
Contact LensSoft/hard lens
Measurement ModeSingle / Progressive / Automatic recognition
Diameter of LensΦ12 – Φ112 mm
PD40 – 90 mm (0.5 mm step)
Measuring Speed0.1 second
Abbe Number30 ~ 60
Display7″ LCD/TFT
PrinterThermal printer
Dimension180 mm × 255 mm × 455 mm
Package Weight12 kg
Unit Weight12 kg
Power Supply100-240 V 50-60 Hz 25 VA
