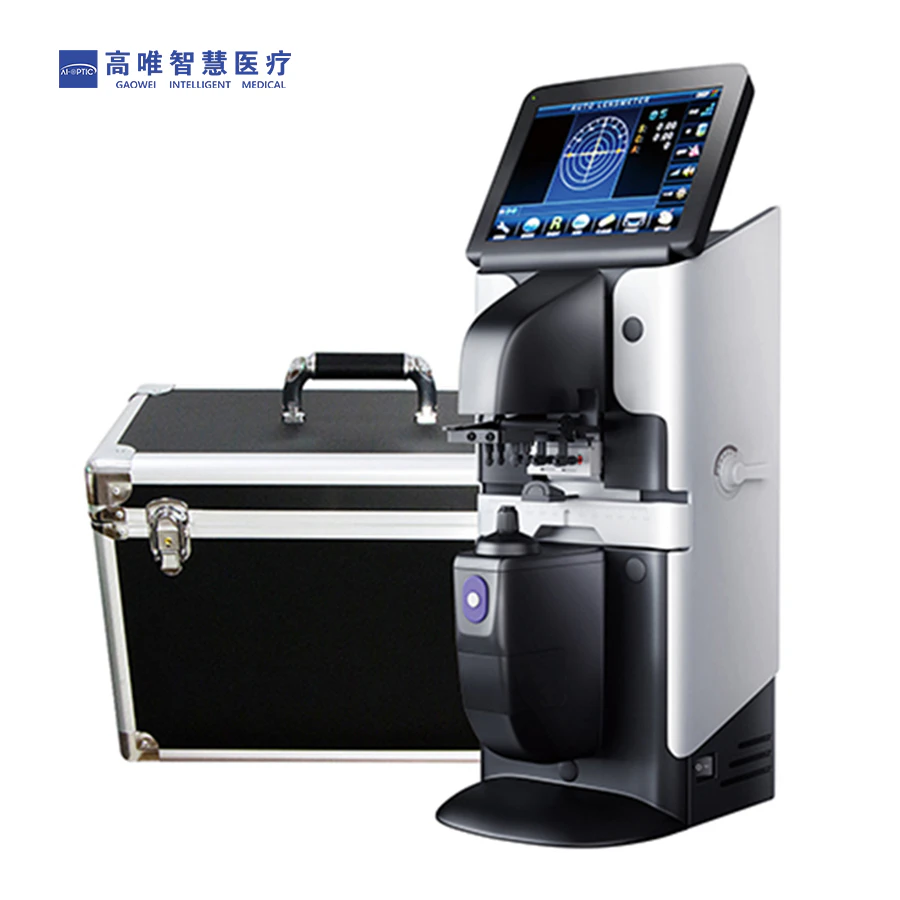

AL-360 Automatic Lensmeter Digital

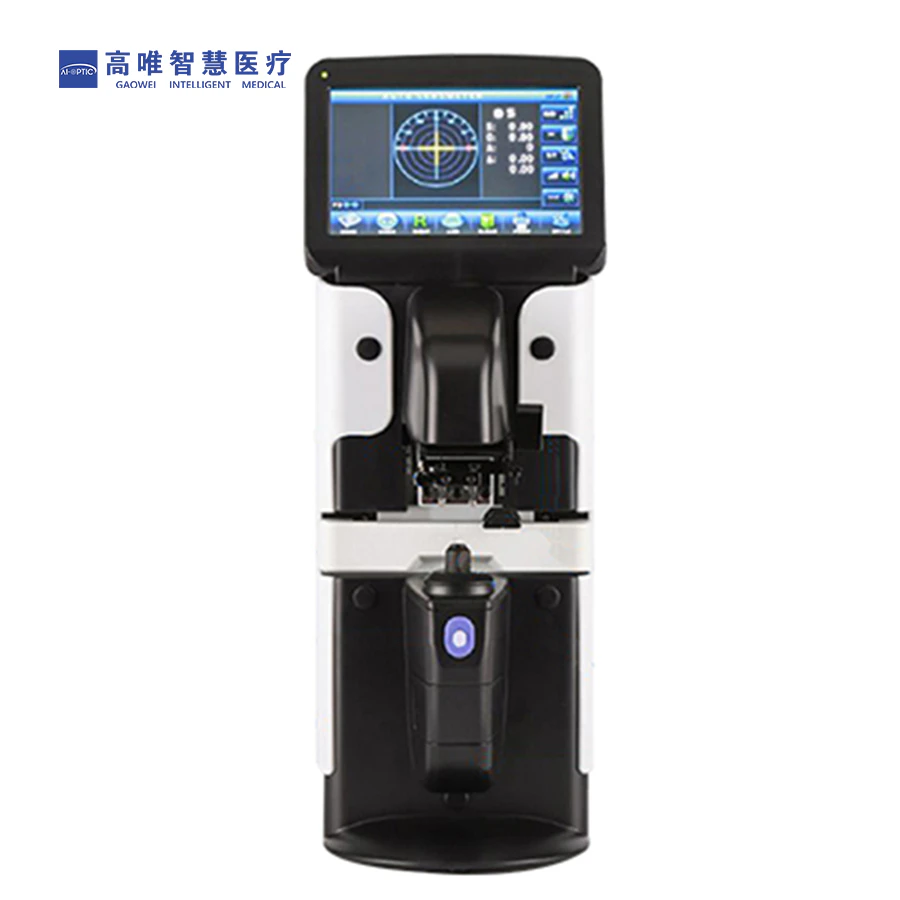

AL-360 front image

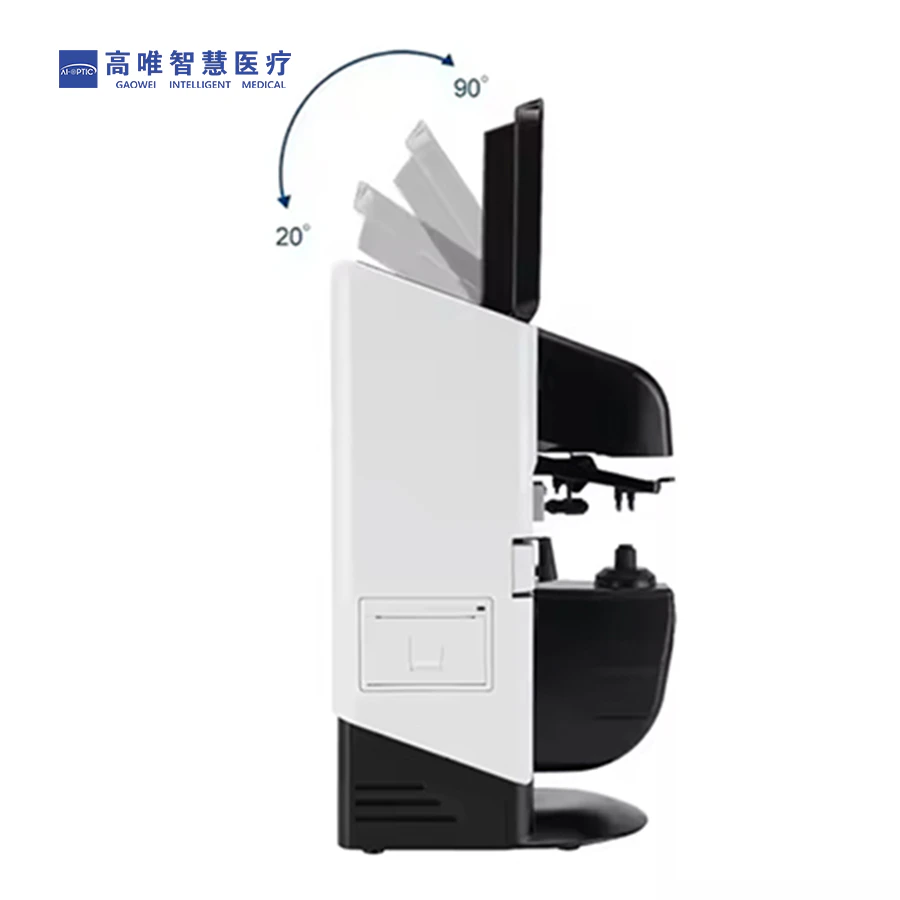

AL-360 Automatic Lensmeter Digital - Image 3

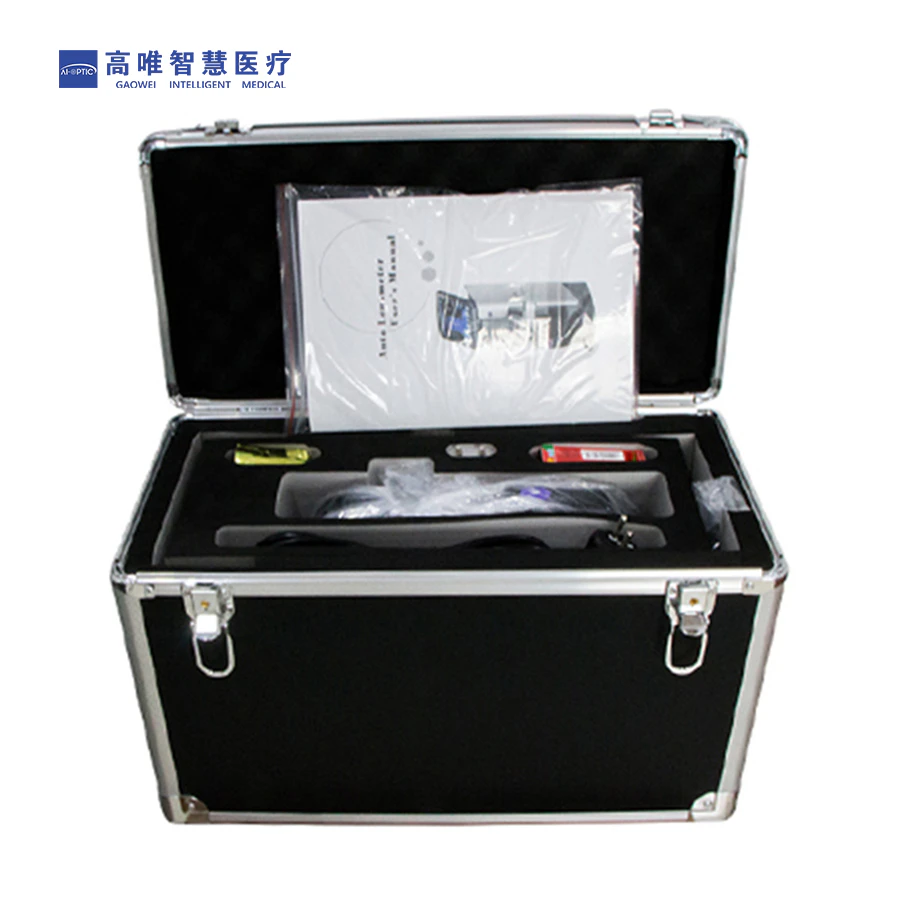

AL-360 Display image

AL-360 Automatic Lensmeter Digital

Model: AL-360

  • Measures prescription lenses, progressive lenses, and contact lenses
    PD, pupil height, and progressive channel length measurement
    UV and blue light measurement
    Automatic lens recognition for faster operation
    7-inch high-resolution touch display
    Bluetooth, USB, RS232, and WiFi data communication
    Built-in thermal printer for measurement records
Send Inquiry

Explore Details

AL-360 Automatic Lensmeter Digital is an optical lens measurement device designed for optical shops, optometry clinics, and laboratories to quickly verify prescription lenses and improve measurement efficiency.

The AL-360 measures sphere, cylinder, axis, addition, prism, PD, and light transmittance for single vision, progressive, and soft/hard contact lenses. It helps optical professionals check lens parameters, support accurate eyewear fitting, and improve daily workflow.

Featuring a Hartmann Sensor with 108-point simultaneous detection, the AL-360 provides reliable measurement results with simple touch screen operation. The adjustable 7-inch LCD display allows clear viewing from different angles, while the icon-based interface makes operation easier.

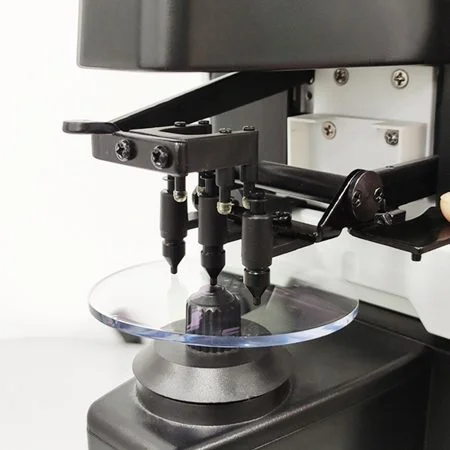

Fast & Accurate Testing

Achieve reliable lens measurements with advanced sensor technology and stable positioning.

  • 108-point Hartmann Sensor
  • 0.1s measurement speed
  • High-precision optical analysis
Fast & Accurate Testing

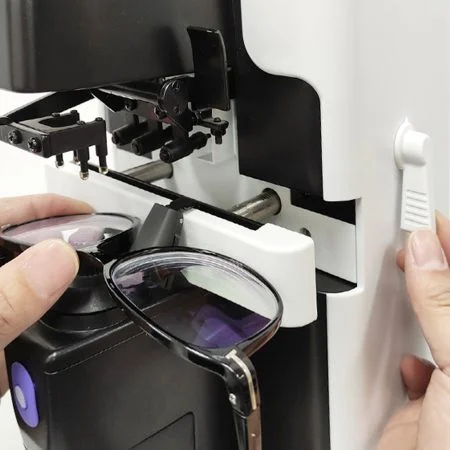

Simplify Lens Inspection

Improve daily optical testing efficiency with intuitive operation and broad lens support.

  • Touchscreen measurement control
  • Single & progressive lens recognition
  • UV / blue / green light analysis
Simplify Lens Inspection

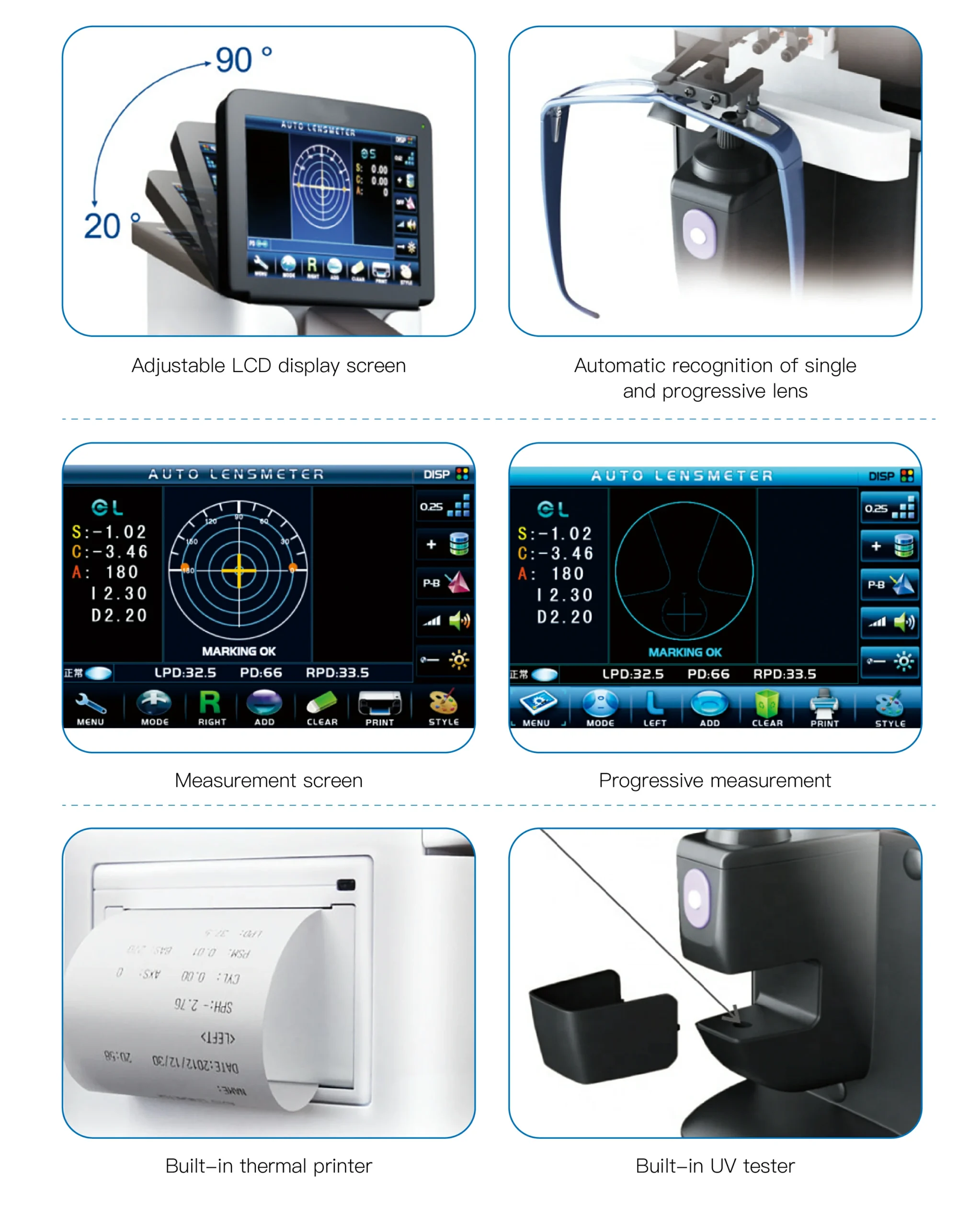

AL-360-functional-illustration-image

Specifications

Range of measurement
Sphere0~ – 25D, 0.01/0.12/0.25D step;
Cylinder0~ -9.99 D 0.01/0.12/0.25D step.
Axis0-180 ° (1 ° step)
Add.0-9.99 D 0.01/0.12/0.25D step.
Prism degree0-15 D 0.01/0.12/0.25D step.
Measurement mode
Cylinder, /-, –
PrismX-Y, P-B
Contact Lenssoft/hard;
Measuring modeSingle/progressive/automatic recognition
Specifications
Diameter of lens20-108mm;
PD40-90mm, 0.5mm step;
Speed of measurement0.1s
DisplayJD-2600A: 7” TFT LCD;
PrinterThermal Printer
Weight5.5kg
Power supply100-240V, 50-60HZ



Trusted Services:

1. Get Video and Brochure with Email or WhatsApp.

2. Free online technical support and training.

3. Free online installation support.

4. 1-3 Years quality warranty.

5. Lifetime after sales support.

6. Most products are CE and ISO 13485 certificated.

7. Free input voltage and plug customization for electrical machines.

8. Fast worldwide shipping, 5-10 working days delivery for most countries.

9. Partial prepayment is acceptable before shipping.

10. Discount price, non-branded or customized products can be offered for distributors.
