Explore Details

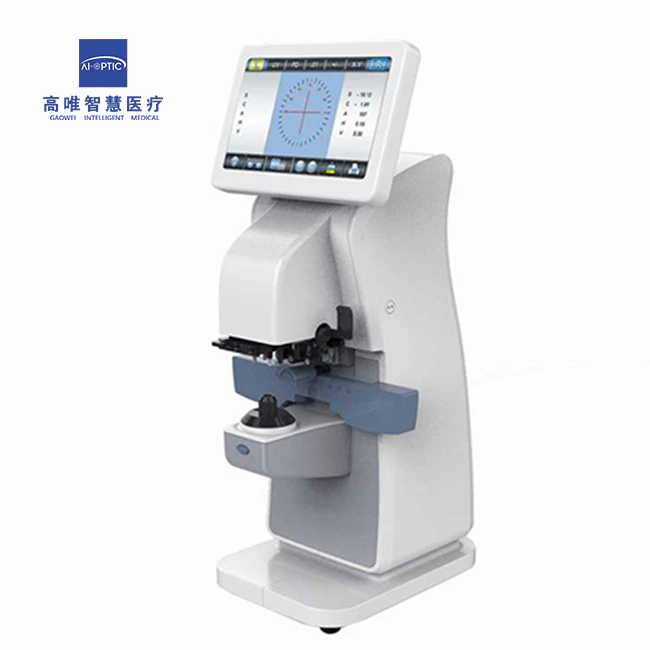

The AL-800 Digital Auto Lensmeter is designed for fast and accurate lens measurement in optical shops, clinics, and lens processing laboratories. It supports automatic recognition of single vision, bifocal, progressive, and contact lenses, helping improve daily workflow and measurement efficiency.
With a 7-inch HD touch LCD and Hartmann multi-point measurement system, the AL-800 provides stable readings for sphere, cylinder, axis, prism, and ADD values. It also supports UV and blue light transmittance testing, making it suitable for modern optical inspection and lens verification.

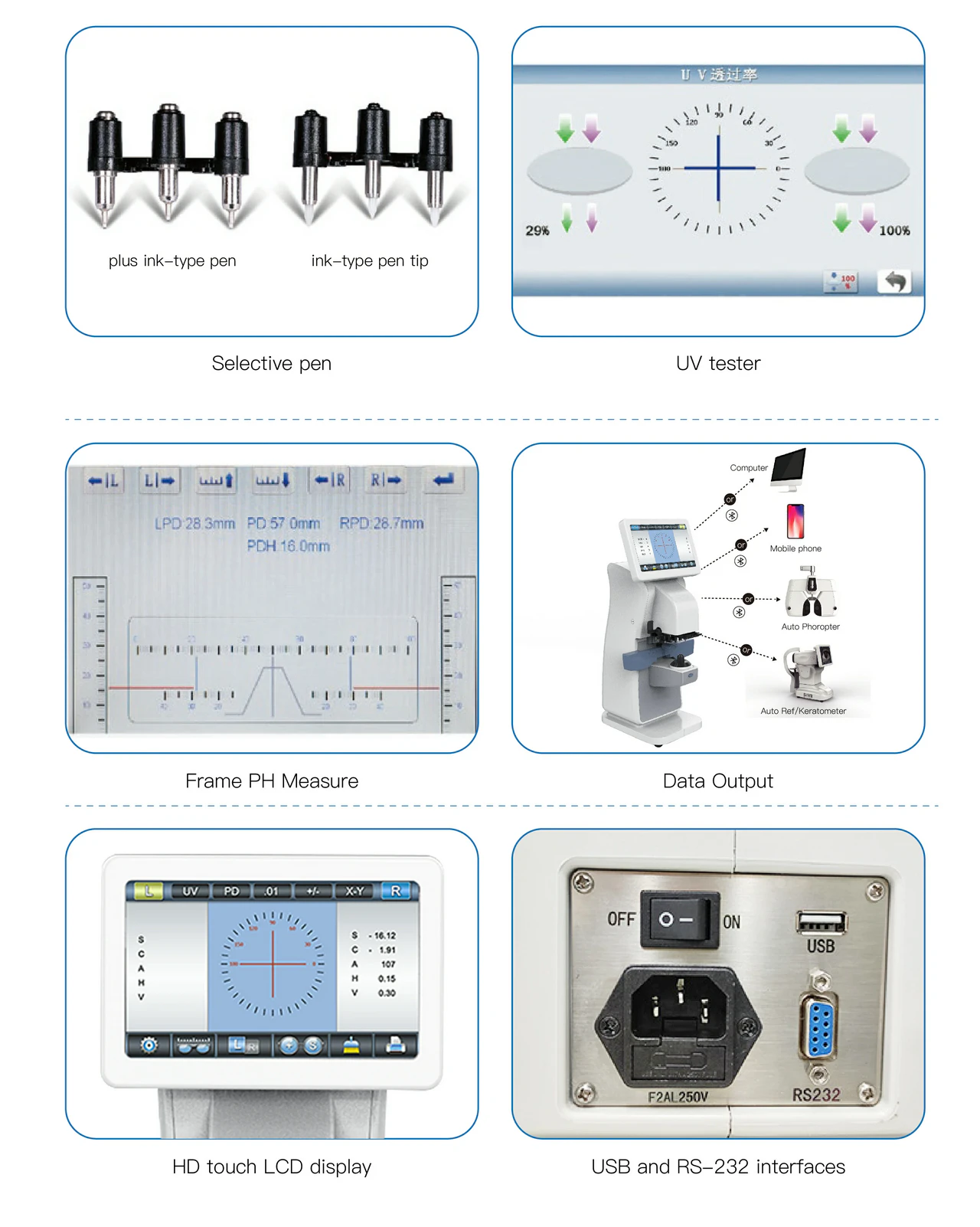

Measurement Functions：
- Sphere power measurement
- Cylinder and axis measurement
- Progressive lens ADD measurement
- Prism measurement
- Contact lens measurement
- UV / blue light transmittance testing
- PD and lens height measurement
Specifications
Technical Data | |
Transmission Ratio of Measurable Lens | > 10%, when the degree exceeds±10D, the transmittance of the lens is required to be > 20% |
Contact Lens | 0 to ±25D, BC 6.00 to 9.00 |
Display | 7.0-inch HD touch LCD display |
Menu | User friendly design, simple and easy to operate |
Diameter of Lens Used | 20mm-100mm |
Power Supply | AC 100 (+ 10%) – 240 (+ 10%) V50/60Hz 40VA |
Maximum Power | 40W |
Gross Weight | 6kg |
Box Size | 550mm * 300mm * 290mm (length * width * height) |
Environment Condition |
|
A. Temperature: 5-40℃ (service temperature) – 20-60 ℃(storage/transportation temperature) B. Humidity: 30-85% (no condensation) (use humidity) 10-95% (storage transportation humidity) C. Atmospheric pressure: 700-1060hpa D. Altitude: up to 2000m E. Others: no harmful dust and smoke | |
Optional Accessories | Printer (built-in thermal printer, paper width: 57mm) |
Spherical Mirror | 0 to ±35D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Cylinder Sphere | 0 to ±10D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Cylindrical Mirror Axis Position | 0°- 180°(reading accuracy: 1°） |
ADD | 0 to 10 D(reading accuracy 0.01D/ 0.06D/ 0.12D/ 0.25D) |
Prism | 0 to 15△ (0.01△ ) |
Reading Resolution | 0.01D/ 0.06D/ 0.12D/ 0.25D |
Trusted Services:
1. Get Video and Brochure with Email or WhatsApp.
2. Free online technical support and training.
3. Free online installation support.
4. 1-3 Years quality warranty.
5. Lifetime after sales support.
6. Most products are CE and ISO 13485 certificated.
7. Free input voltage and plug customization for electrical machines.
8. Fast worldwide shipping, 5-10 working days delivery for most countries.
9. Partial prepayment is acceptable before shipping.
10. Discount price, non-branded or customized products can be offered for distributors.
